S3- Simple-Storage-Service

Indroduction​

  • Global Service
  • Object store (key-value pairs)
  • Buckets must have a globally unique name
  • Buckets are defined at the regional level
  • Objects have a key (full path to the object): s3://my_bucket/my_folder/another_folder/my_file.txt
  • The key is composed of bucket + prefix + object name s3://my_bucket /my_folder/another_folder/ my_file.txt
  • There’s no concept of directories within buckets (just keys with very long names that contain slashes)
  • Max Object Size: 5TB
  • Durability: 99.999999999% (total 11 9's)
  • SYNC command can be used to copy data between buckets, possibly in different regions
note
  • S3 delivers strong read-after-write consistency (if an object is overwritten and immediately read, S3 always returns the latest version of the object)
  • S3 is strongly consistent for all GET, PUT and LIST operations

Example​

Checkout S3 example

Bucket Versioning​

  • Enabled at the bucket level
  • Protects against unintended deletes
  • Ability to restore to a previous version
  • Any file that is not versioned prior to enabling versioning will have version “null”
  • Suspending versioning does not delete the previous versions, just disables it for the future
  • To restore a deleted object, delete it's "delete marker"
note
  • Versioning can only be suspended once it has been enabled.
  • Once you version-enable a bucket, it can never return to an unversioned state.

Encryption​

  • Can be enabled at the bucket level or at the object level
  • Server Side Encryption (SSE)
    • SSE-S3
      • Keys managed by S3
      • AES-256 encryption
      • HTTP or HTTPS can be used
      • Must set header: "x-amz-server-side-encryption": "AES256"
    • SSE-KMS
      • Keys managed by KMS
      • HTTP or HTTPS can be used
      • KMS provides control over who has access to what keys as well as audit trails
      • Must set header: "x-amz-server-side-encryption": "aws:kms"
    • SSE-C
      • Keys managed by the client
      • Client sends the key in HTTPS headers for encryption/decryption (S3 discards the key after the operation)
      • HTTPS must be used as key (secret) is being transferred
    • Client Side Encryption
      • Keys managed by the client
      • Client encrypts the object before sending it to S3 and decrypts it after retrieving it from S3
note

Default encryption: encrypt the files using the default encryption (specify the encryption for the file while uploading to override the default) Bucket policy can be used to force a specific type of encryption on the objects uploaded to S3

Encryption Example​

Access Management​

  • User based security
    • IAM policies define which API calls should be allowed for a specific user
    • Preferred over bucket policy for fine-grained access control
  • Resource based security (Bucket Policy)
    • Grant public access to the bucket
    • Force objects to be encrypted at upload
    • Cross-account access
    • Object Access Control List (ACL) - applies to the objects while uploading
    • Bucket Access Control List (ACL) - access policy that applies to the bucket
note

An IAM principal can access an S3 object if the IAM permission allows it or the bucket policy allows it and there is no explicit deny.

By default, an S3 object is owned by the account that uploaded it even if the bucket is owned by another account. To get full access to the object, the object owner must explicitly grant the bucket owner access. As a bucket owner, you can create a bucket policy to require external users to grant bucket-owner-full-control when uploading objects so the bucket owner can have full access to the objects.

S3 Static Websites​

  • Host static websites (may contain client-side scripts) and have them accessible on the public internet over HTTP only (for HTTPS, use CloudFront with S3 bucket as the origin)
  • The website URL will be either of the following:
    • <bucket-name>.s3-website-<region>.amazonaws.com
    • <bucket-name>.s3-website.<region>.amazonaws.com
  • If you get a 403 (Forbidden) error, make sure the bucket policy allows public reads

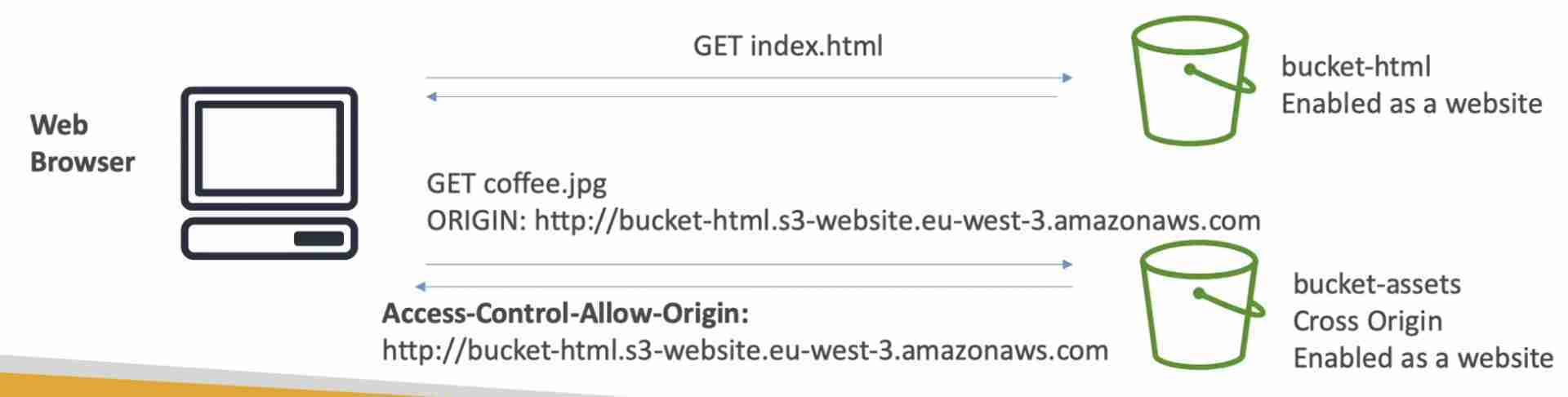

  • For cross-origin access to the S3 bucket, we need to enable CORS on the bucket s3-static
  • To host an S3 static website on a custom domain using Route 53, the bucket name should be the same as your domain or subdomain Ex. for subdomain portal.tutorialsdojo.com, the name of the bucket must be portal.tutorialsdojo.com

Static Site Example​

Storage Classes​

  • Data can be transitioned between storage classes manually or automatically using lifecycle rules
  • Data can be put directly into any storage class

  • Standard​

    • 99.99% availability
    • Most expensive
    • Instant retrieval
    • No cost on retrieval (only storage cost)
    • For frequently accessed data

  • Infrequent Access​

    • For data that is infrequently accessed, but requires rapid access when needed
    • Lower storage cost than Standard but cost on retrieval
    • Can move data into IA from Standard only after 30 days
    • Two types:
      • Standard IA
        • 99.9% Availability
      • One-Zone IA
        • 99.5% Availability
        • Data is lost if AZ fails
        • Storage for infrequently accessed data that can be easily recreated

  • Glacier​

    • For data archival
    • Cost for storage and retrieval
    • Can move data into Glacier from Standard anytime
    • Objects cannot be directly accessed, they first need to be restored which could take some time (depending on the tier) to fetch the object.
    • Default encryption for data at rest and in-transit
    • Three types:
    • Glacier Instant Retrieval
      • 99.9% availability
      • Millisecond retrieval
      • Minimum storage duration of 90 days
      • Great for data accessed once a quarter
    • Glacier Flexible Retrieval
      • 3 retrieval flexibility (decreasing order of cost):
        • Expedited (1 to 5 minutes)
          • Can provision retrieval capacity for reliability
          • Without provisioned capacity expedited retrievals might be rejected in situations of high demand
        • Standard (3 to 5 hours)
        • Bulk (5 to 12 hours)
      • Minimum storage duration of 90 days
    • Glacier Deep Archive
      • 99.99% availability
      • 2 flexible retrieval:
        • Standard (12 hours)
        • Bulk (48 hours)
      • Minimum storage duration of 180 days
      • Lowest cost
    • Intelligent Tiering
      • 99.9% availability
      • Moves objects automatically between Access Tiers based on usage
      • Small monthly monitoring and auto-tiering fee
      • No retrieval charges

Lifecycle Rules​

  • Used to automate transition or expiration actions on S3 objects

  • Transition Action (transitioned to another storage class)

  • Expiration Action (delete objects after some time)

    • delete a version of an object
    • delete incomplete multi-part uploads

  • Lifecycle Rules can be created for a prefix (ex s3://mybucket/mp3/*) or objects tags (ex Department: Finance)

  • Checkout S3 Lifecycle rules example

note
  • When you apply a retention period to an object version explicitly, you specify a Retain Until Date for the object version
  • When you use bucket default settings, you don't specify a Retain Until Date. Instead, you specify a duration, for which every object version placed in the bucket should be protected.
  • Different versions of a single object can have different retention modes and periods

S3 Analytics​

  • Provides analytics to determine when to transition data into different storage classes
  • Does not work for ONEZONE_IA & GLACIER

Performance​

  • 3,500 PUT/COPY/POST/DELETE and 5,500 GET/HEAD requests per second per prefix
  • Recommended to spread data across prefixes for maximum performance
  • SSE-KMS may create bottleneck in S3 performance
  • Performance Optimizations
    • Multi-part Upload
      • parallelizes upload
      • recommended for files > 100MB
      • must use for files > 5GB
    • Byte-range fetches
      • Parallelize download requests by fetching specific byte ranges in each request
      • Better resilience in case of failures since we only need to refetch the failed byte range and not the whole file
    • S3 Transfer Acceleration
      • Speed up upload and download for large objects (>1GB) for global users
      • Data is ingested at the nearest edge location and is transferred over AWS private network (uses CloudFront internally)

S3 Select​

  • Select a subset of data from S3 using SQL queries (server-side filtering)
  • Less network cost
  • Less CPU cost on the client-side

Data Transfer Costs​

  • Uploads to S3 are free
  • Downloads from S3 are paid
  • Using S3 Transfer Acceleration, you pay only for transfers that are accelerated
  • Since buckets are defined within a region, data transfer within a region is free

S3 Notification Events​

  • Optional
  • Generates events for operations performed on the bucket or objects
  • Object name filtering using prefix and suffix matching
  • For the same combination of prefix and event type, we can only have one event rule. Example: we can send S3 notification for object created at /files to only one destination (single rule).
  • Targets
    • SNS topics
    • SQS Standard queues (not FIFO queues)
    • Lambda functions

Requester Pays Buckets​

  • Requester pays the cost of the request and the data downloaded from the bucket. The bucket owner only pays for the storage.
  • Used to share large datasets with other AWS accounts
  • The requester must be authenticated in AWS (cannot be anonymous)

Object Lock​

  • WORM (Write Once Read Many) model
  • Block an object version modification or deletion for a specified amount of time
  • Modes:
  • Governance mode
    • Only users with special permissions can overwrite or delete the object version or alter its lock settings
  • Compliance mode
    • A protected object version cannot be overwritten or deleted by any user, including the root user
    • The object's retention mode can’t be changed, and the retention period can’t be shortened
  • Glacier Vault Lock
    • WORM (Write Once Read Many) model for Glacier
    • For compliance and data retention
