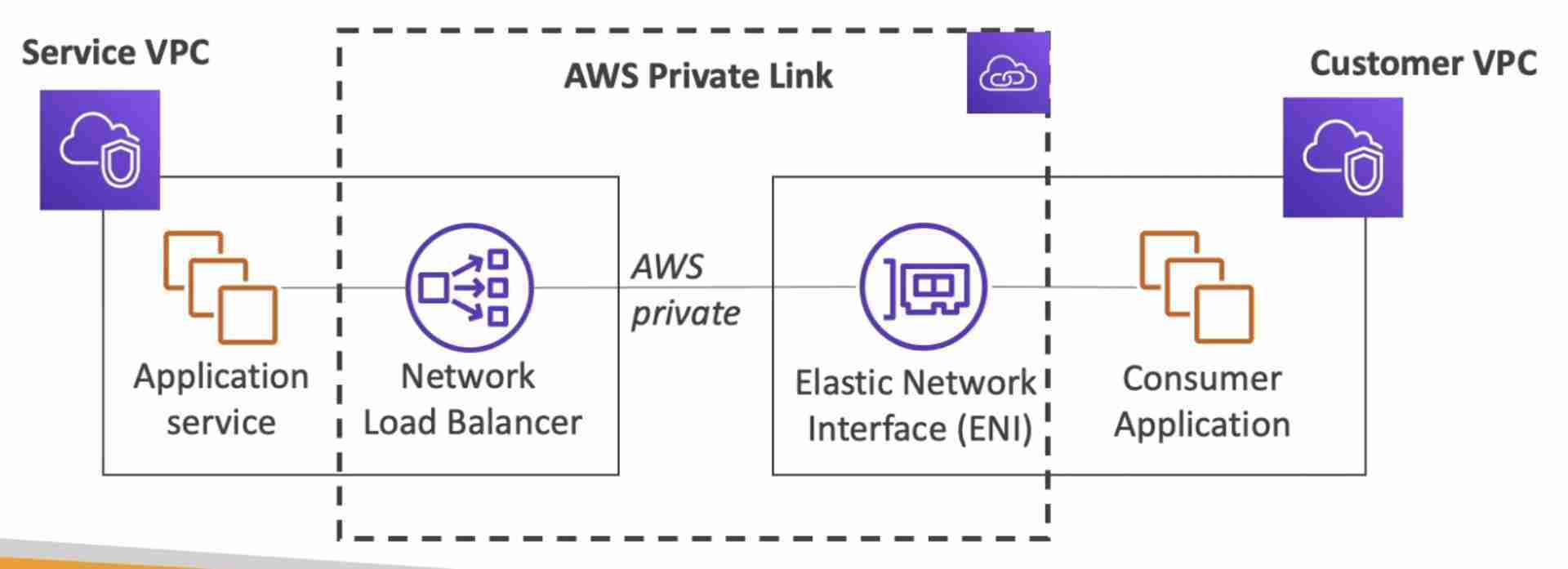

Private Link

  • Used to expose services in one VPC to multiple other VPCs, possibly in different accounts
  • Should not use VPC peering as we only want to expose a few services
  • Requires a NLB (common) or GWLB in the service VPC and ENI in the consumer VPC
  • Use multi-AZ NLB and ENIs in multiple AZ for fault-tolerance

attachments/Pasted image 20220512235655.jpg

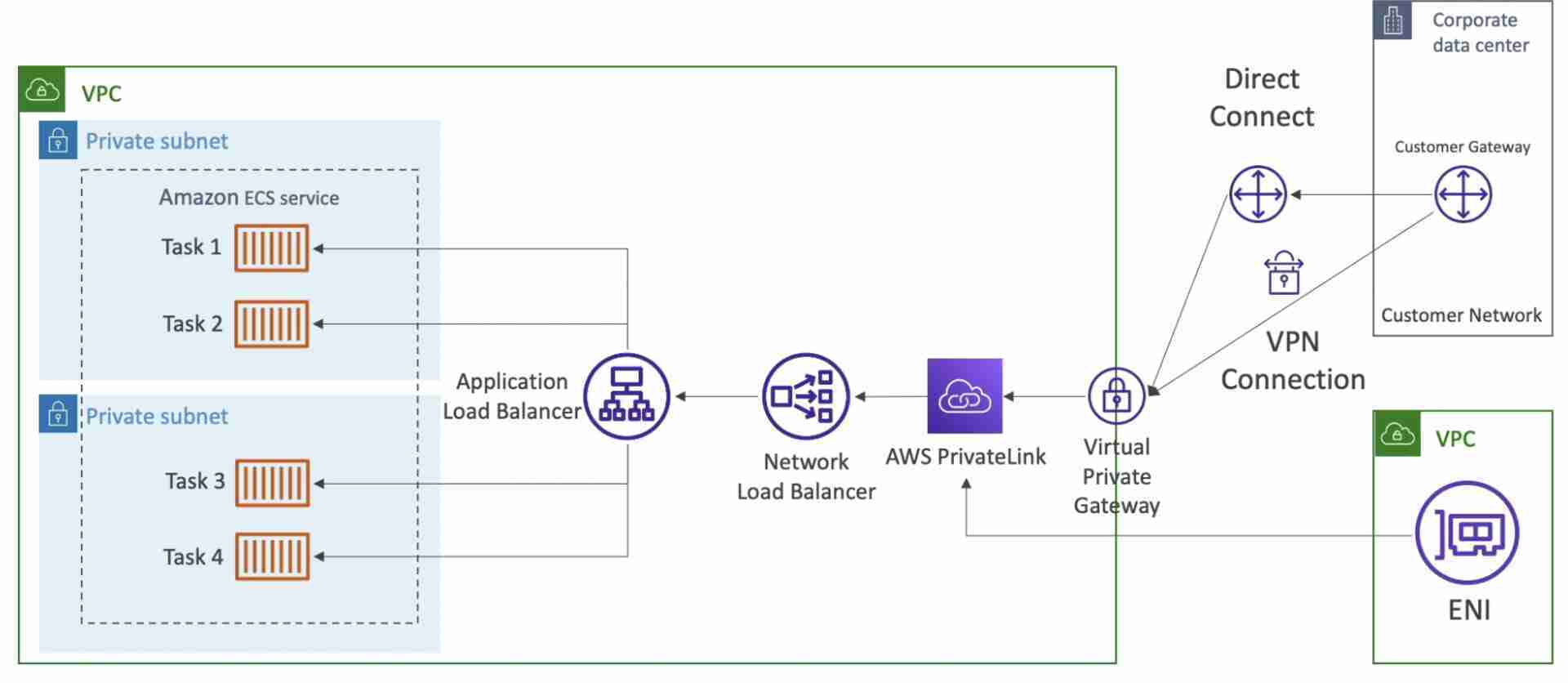

Exposing ECS tasks​

  • ECS tasks require an ALB. So, we can connect the ALB to the NLB for PrivateLink.
  • Corporate Data Centers will still connect through the VPN or Direct Connect.

attachments/Pasted image 20220513000308.jpg
