Direct Connect (DX)

Dedicated private connection from an on-premise data center to a VPC
Data in transit is not-encrypted but the connection is private (secure)
More stable and secure than Site-to-Site VPN

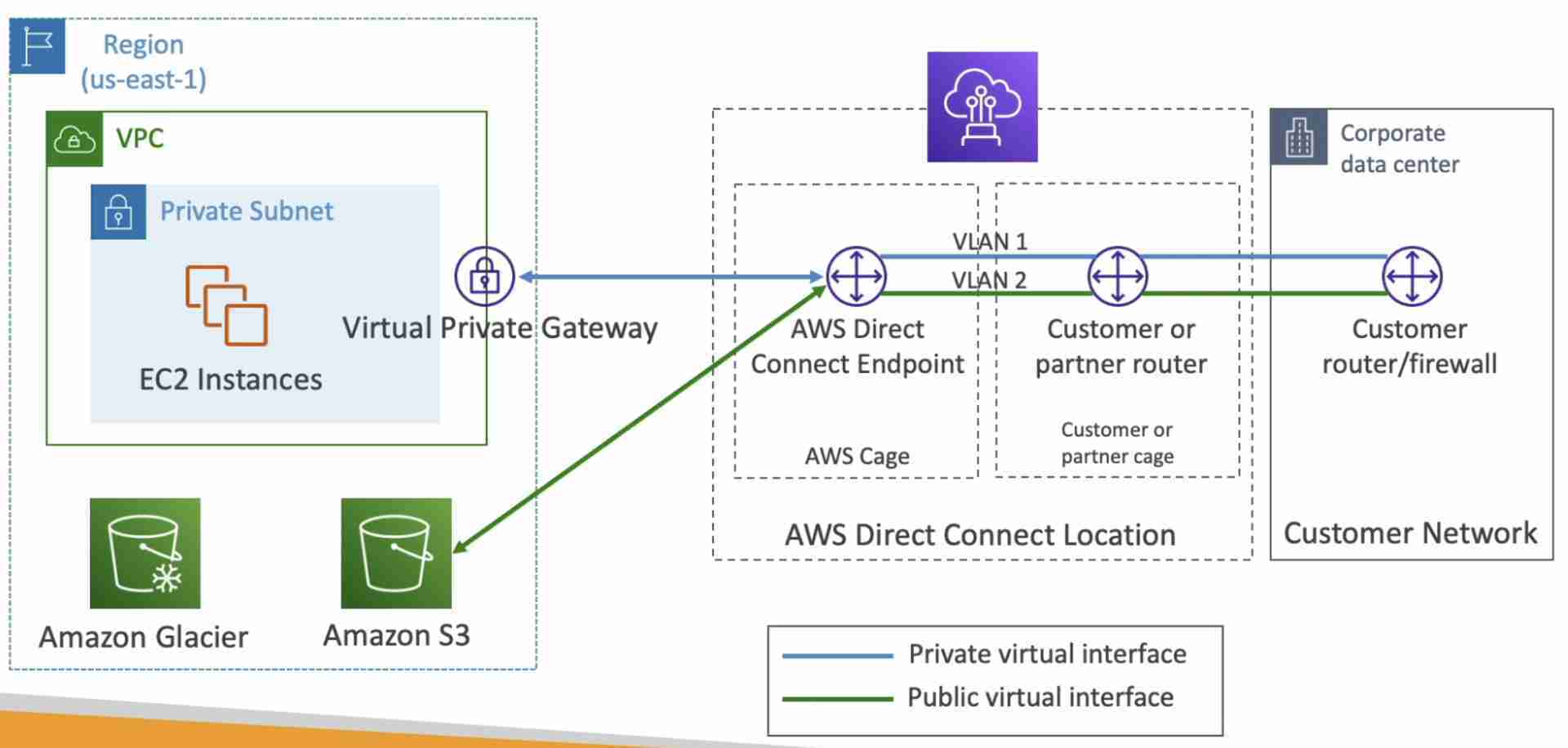

Access public & private resources on the same connection using Public & Private Virtual Interface (VIF) respectively
Connection to a data center is made from a Direct Connect Location
Connects to a Virtual Private Gateway (VGW) on the VPC end
Supports both IPv4 and IPv6
Supports Hybrid Environments (on premises + cloud)
Lead time > 1 month

Connection Types

Dedicated Connection
- 1 Gbps and 10 Gbps (fixed capacity)
- Physical ethernet port dedicated to a customer
Hosted Connection
- 50Mbps, 500 Mbps, up to 10 Gbps
- On-demand capacity scaling (more flexible than dedicated connection)

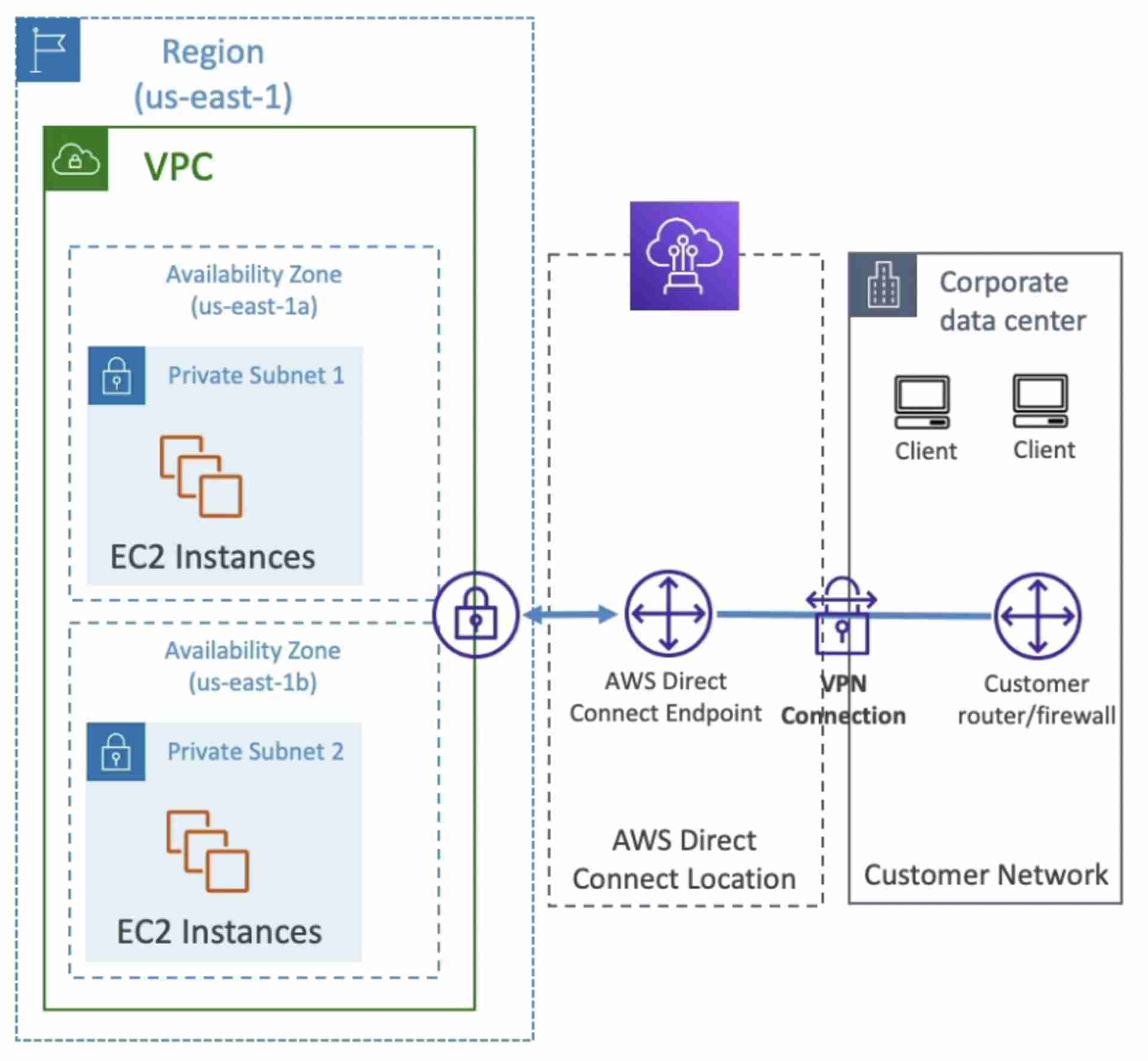

For encryption in flight, use AWS Direct Connect + VPN which provides an IPsec-encrypted private connection
Good for an extra level of security

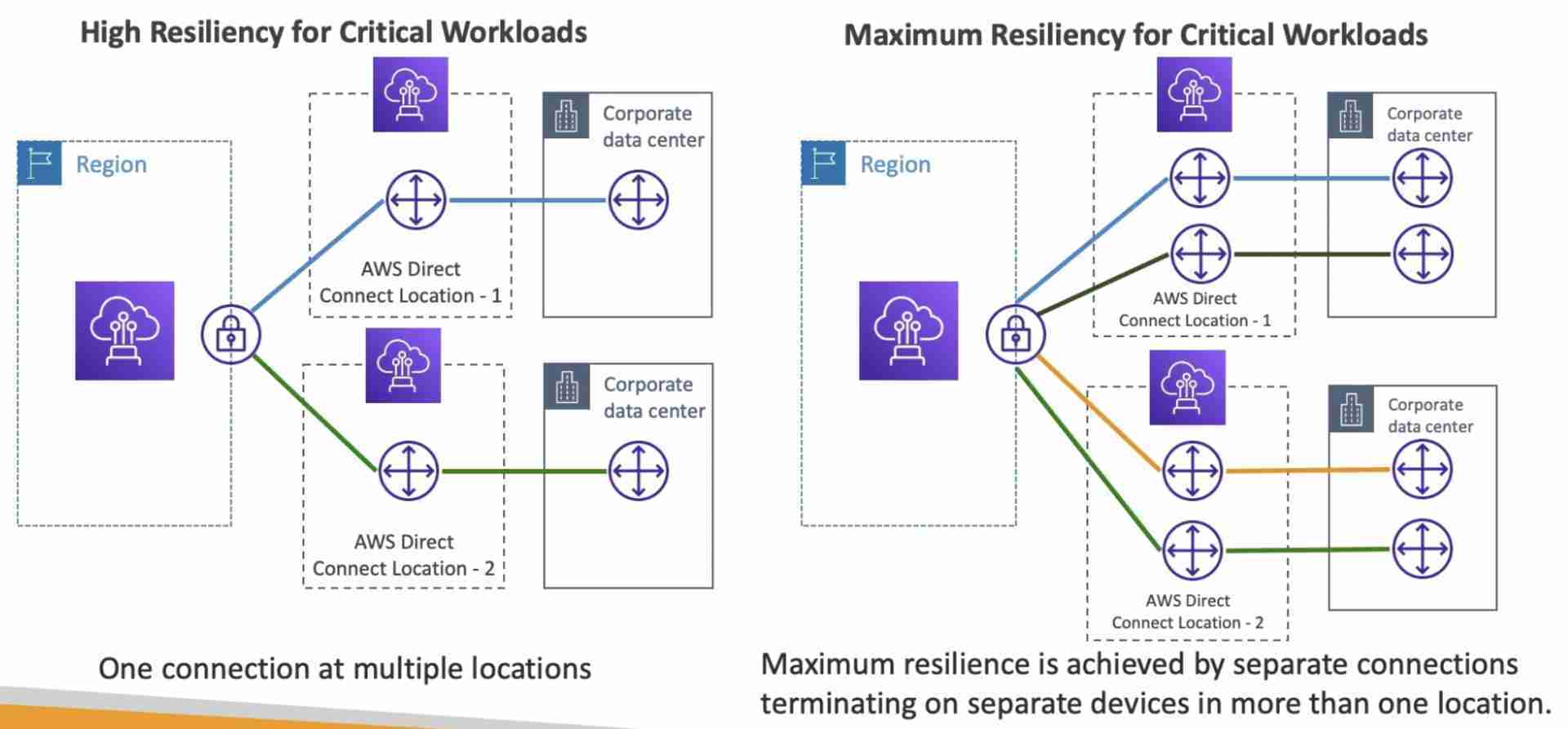

Best way (redundant direct connect connections)
Cost-effective way (VPN connection as a backup)
- Implement an IPSec VPN connection and use the same BGP prefix. Both the Direct Connect connection and IPSec VPN are active and being advertised using the Border Gateway Protocol (BGP). The Direct Connect link will always be preferred unless it is unavailable.

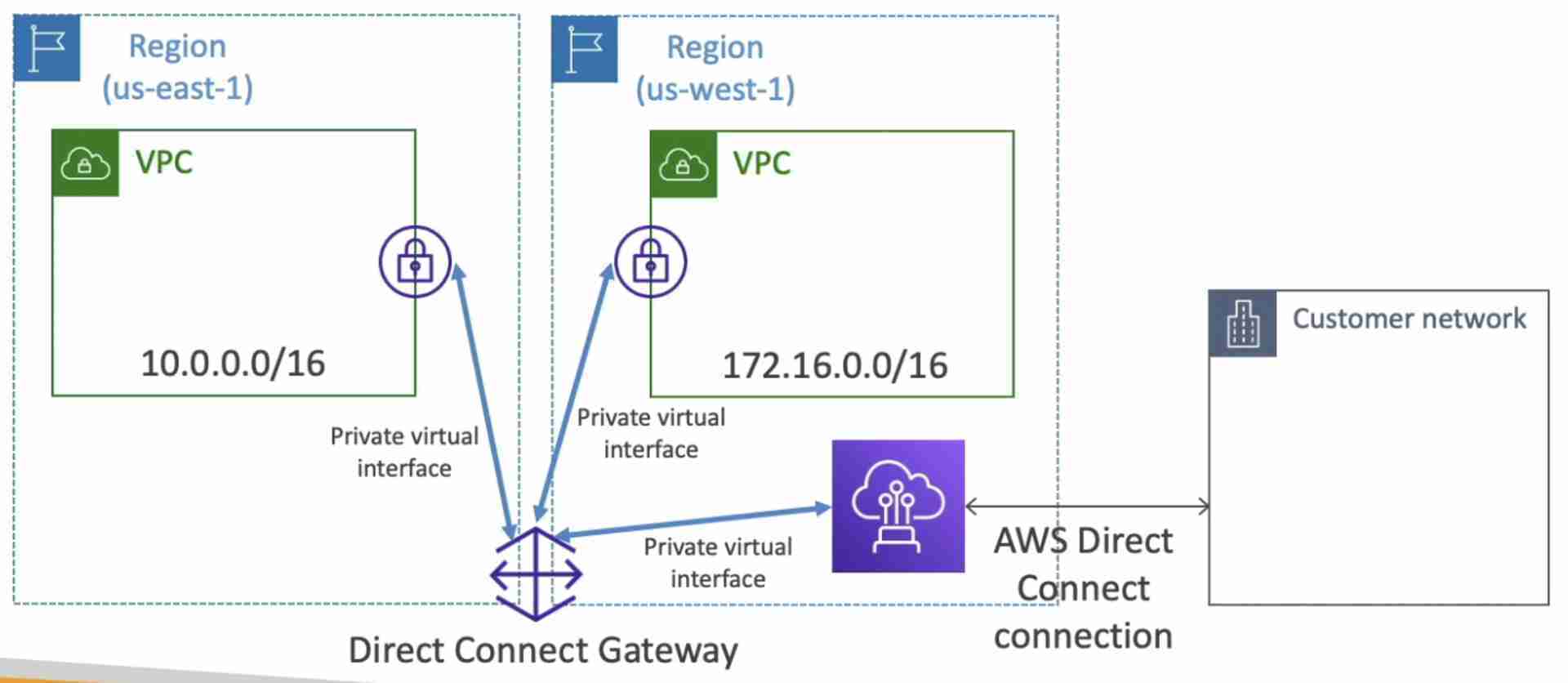

Used to setup a Direct Connect to multiple VPCs, possibly in different regions but same account
Using DX, we will create a Private VIF to the Direct Connect Gateway which will extend the VIF to Virtual Private Gateways in multiple VPCs (possibly across regions).
